QUALITY, SAFETY, PERFORMANCE

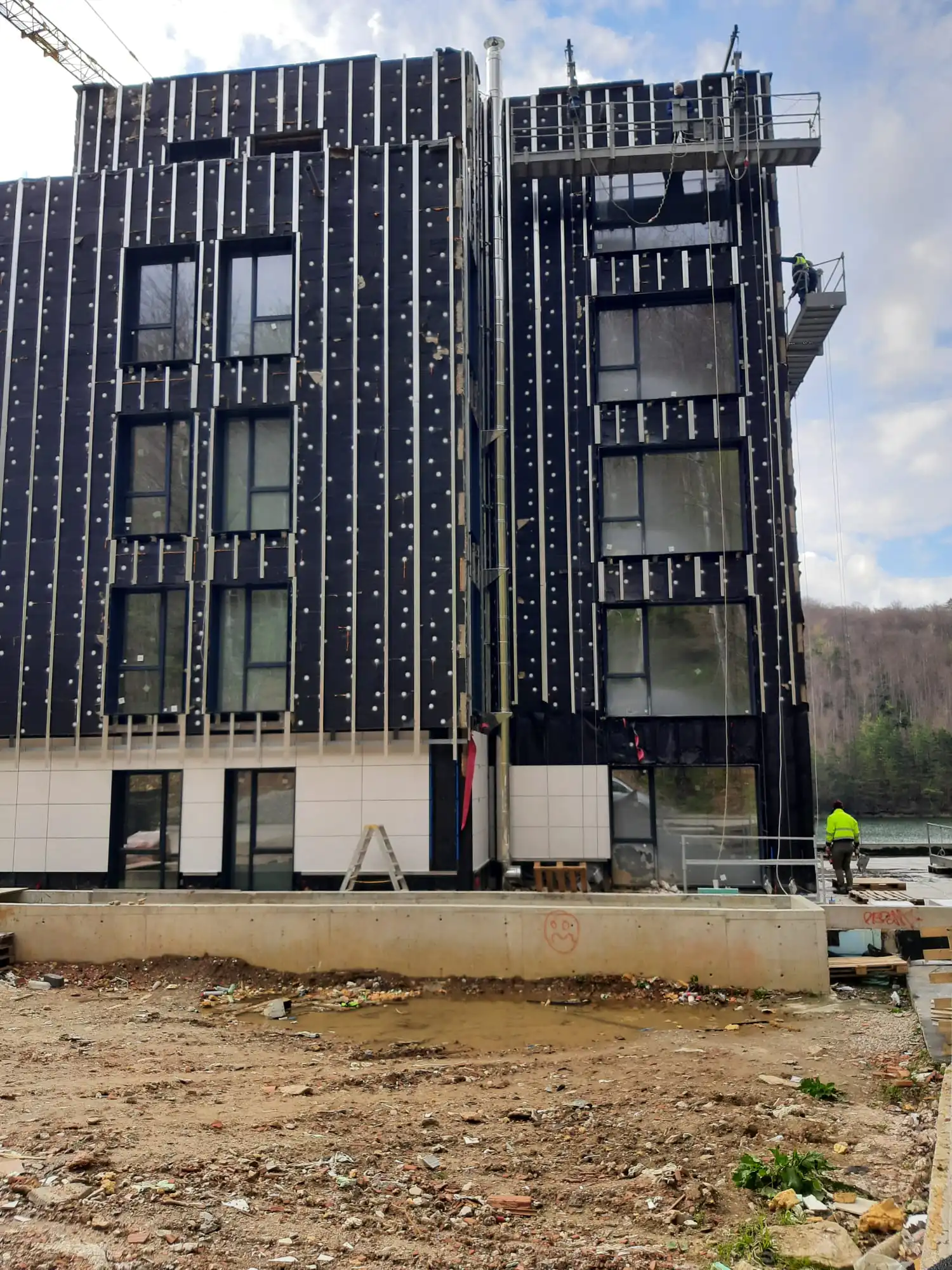

Industrial INOX: The industrial chimney that protects your buildings.
*Up to 800mm diameter
Stainless steel chimneys represent a major innovation in flue gas evacuation systems, offering lightweight construction and exceptional adaptability.
Industrial INOX is a complete chimney system, manufactured in Romania using the latest technologies and quality standards. It provides an accessible, efficient, and safe solution for any project.
KAMINHORN CHIMNEY SYSTEMS RANGE
Why choose a professional stainless steel chimney?
Performance and Energy Efficiency
KaminHorn professional stainless steel chimneys are manufactured in Romania and comply with current European safety standards, being CE certified for operating temperatures of 600°C.
Versatility
KaminHorn chimney systems fit perfectly into any exterior style thanks to the available color options and will remain reliable for many years.
Durability
The robust and rigid construction helps the chimney system withstand deformation and high temperatures for an extended period.
Safety
The KaminHorn stainless steel chimney system is resistant to soot fires and certified according to current European norms, offering users a worry-free experience.
Easy Connection
The chimney is recommended for the following fuel types: gas, liquid, and solid. It is designed for the natural draft evacuation of flue gases from boilers, stoves, fireplaces, and other heat sources.
Warranty
KaminHorn offers a 10-25 year warranty for its stainless steel chimney system range.

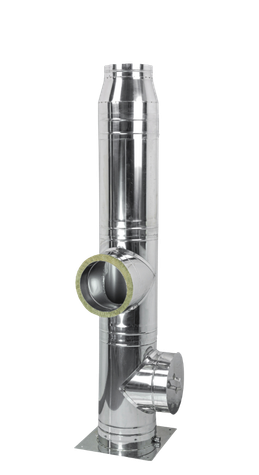

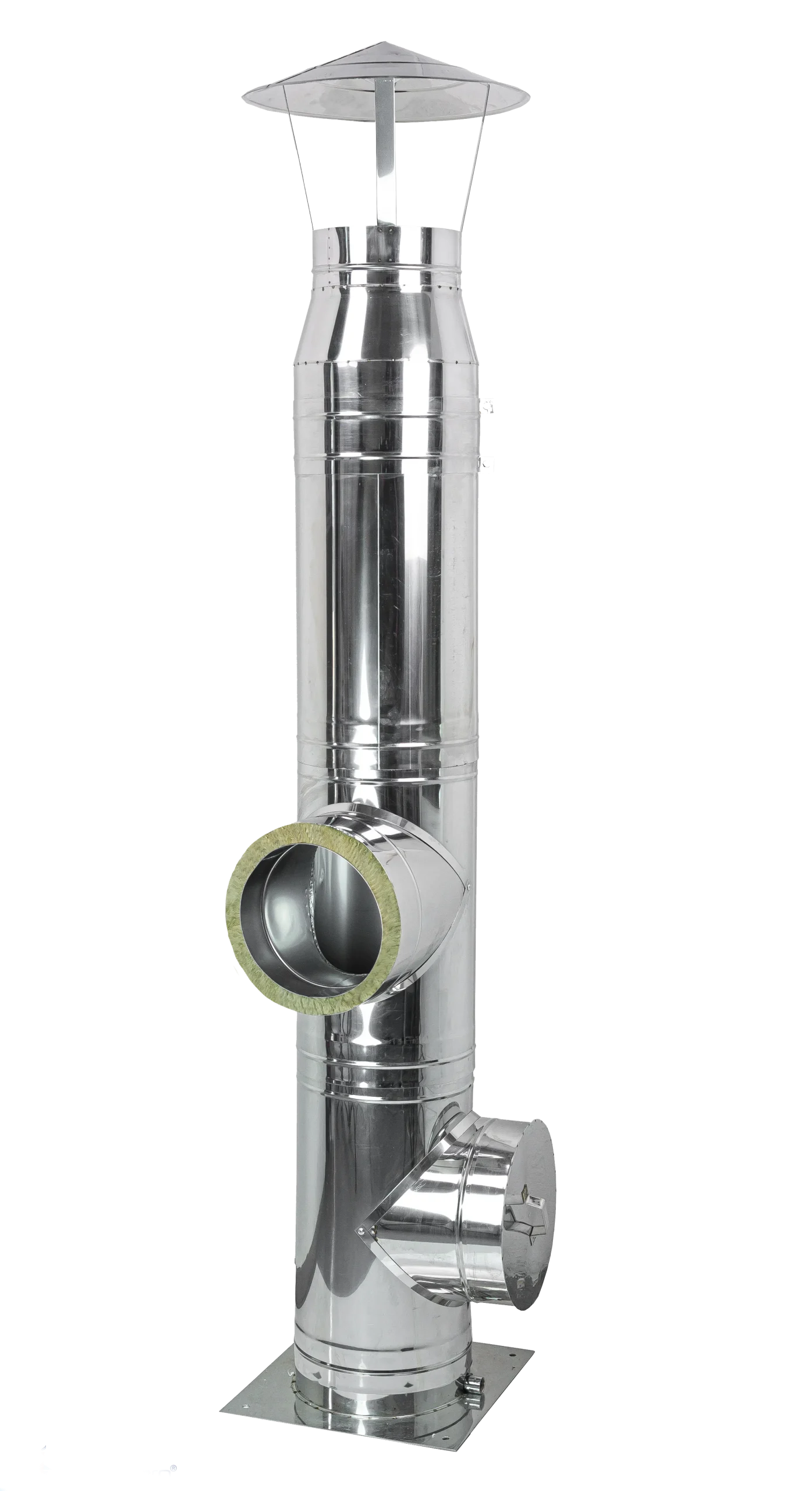

SYSTEM COMPONENTS
A complete system engineered for maximum efficiency
- Stainless Steel Terminal Cone: 1 pc
- Chimney Segment (Double Wall) – 1.0m: Qty depends on height
- Cleaning Element (Inspection Door): 1 pc

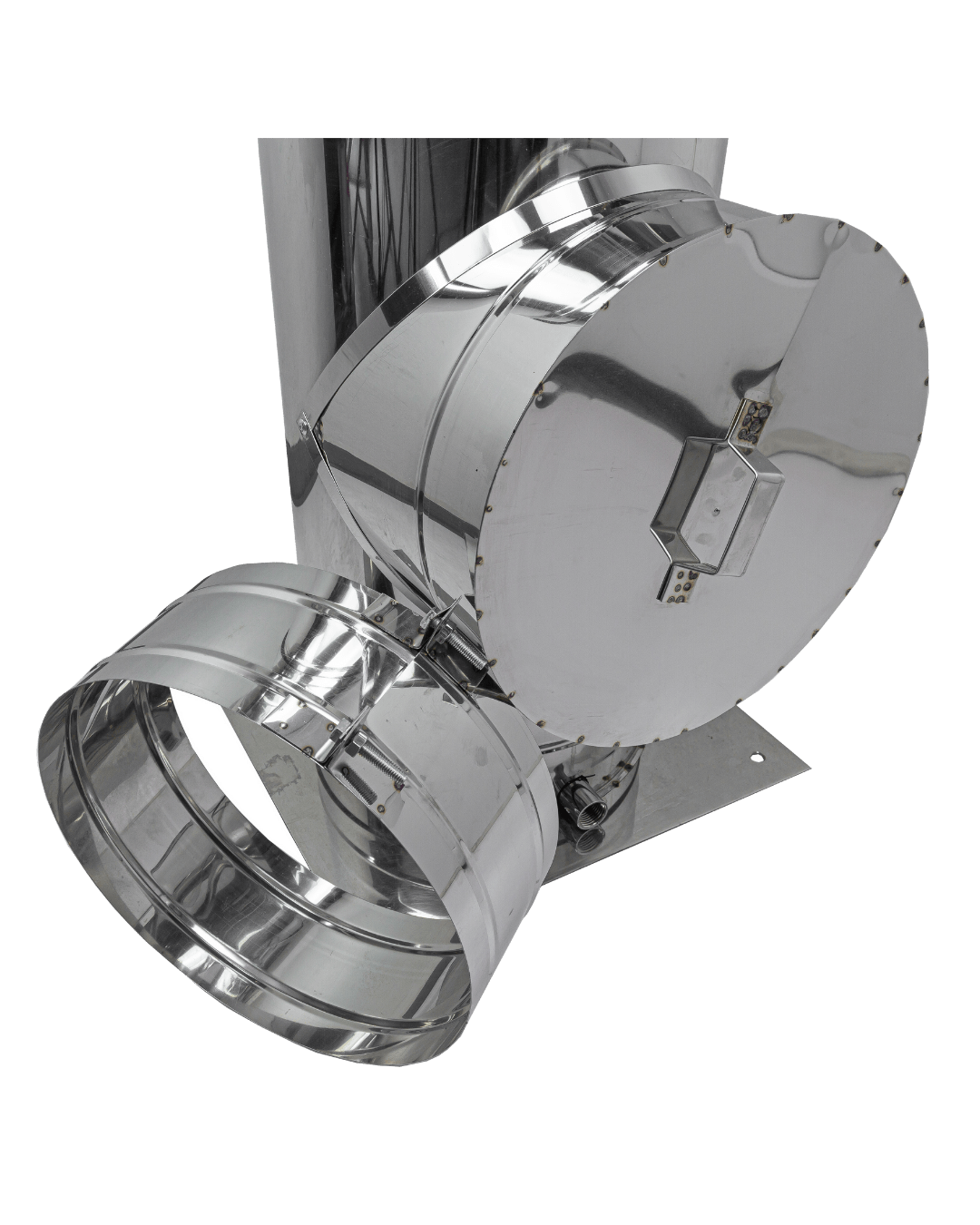

- Smoke Connection Tee – 90°: 1 pc
- Condensate Collector Base – Level 0: 1 pc
- Intermediate Clamp (Segment locking): Qty depends on height

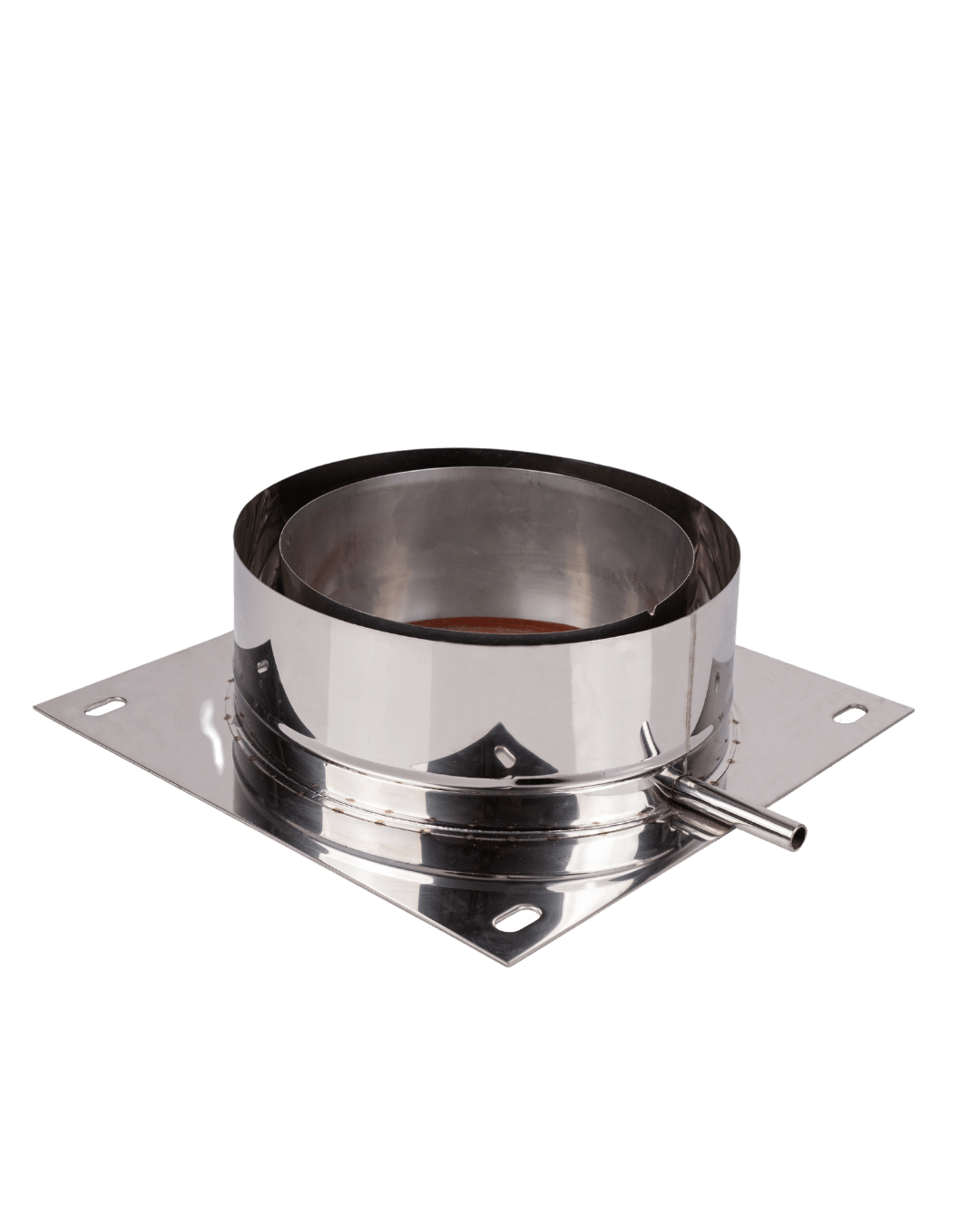

- Wall Support – Fixed Bracket: 1 pc
Advantages & Applications
ADVANTAGES
- High degree of insulation.
- Electrostatic painted stainless steel outer shell (optional).
- High-Density Insulation: Using the highest density Ceramic Fiber Insulation Blanket available.
- Working Temperature: 600°C.
- Specialized Technical Consulting.
- Fast Delivery (Securely packed on pallets).
- CE Certified.
- Resistant to thermal expansion.
- Material: Stainless Steel AISI 304 (0.5mm inner / 0.5mm outer).
- Wool Thickness: 25 mm.
- Easy Assembly.
APPLICATIONS
- Solid fuel boilers/furnaces.
- Condensing boilers.
- Fireplaces and stoves (wood, gas, or oil).
- Residential or industrial ovens, fireplaces, and hoods.
CERTIFICATION AND DIMENSIONS
- Certification T400 N1 W Vm L20070 G 200 (Dedicated industrial use)
- Certification T400 N1 W Vm L20070 G 105
- For diameters: Ø450 ÷ 800 mm - Outer wall thickness: 0.7mm - Insulation: 25mm
